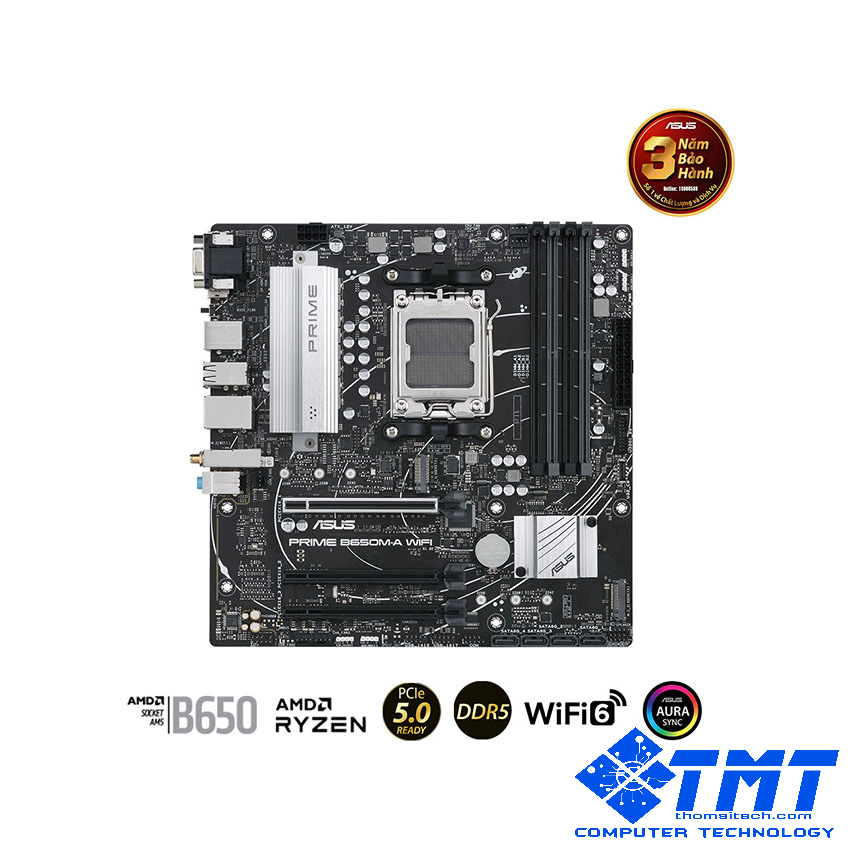

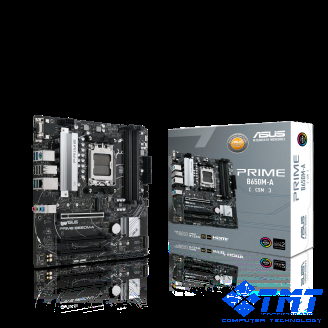

Mainboard Asus PRIME B650M-A WIFI-CSM DDR5

Mainboard Asus PRIME B650M-A WIFI-CSM DDR5

Socket: AM5 hỗ trợ AMD Ryzen 7000 Series

Kích thước: mATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x1 mode)

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Sản phẩm      Bo mạch chủ

Tên Hãng      Asus

Model        PRIME B650M-A WIFI-CSM

CPU hỗ         trợ AMD

Chipset      AMD B650

RAM hỗ trợ      4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory

Khe cắm mở rộng

AMD Ryzen™ 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD B650 Chipset

2 x PCIe 4.0 x16 slots (support x1 mode)

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD B650 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x VGA port

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 2.5Gb Ethernet

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Kích cỡ

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
